Does Anybody Got Mitsubishi V6 Engine Details

[PettyGal]

Does Anybody Got Mitsubishi V6 Engine Details？
Will the engine cause many problem?



[SkYwAlKeR]

6a12
2.0L dohc engine
v6 24v engine
NA engine

6a10
1.6L dohc engine
v6 24v engine
NA engine

6a12tt
2.0L dohc engine
v6 24v engine
twin turbo configuration



[PettyGal]

6a12
2.0L dohc engine
v6 24v engine
NA engine

6a10
1.6L dohc engine
v6 24v engine
NA engine

6a12tt
2.0L dohc engine
v6 24v engine
twin turbo configuration

Thks 4 you details o....
Do you know the price?



[SkYwAlKeR]

nope... i didnt keep myself updated with halfcut prices...



[PettyGal]

Anybody got the inside picture of v6?

Bump:

nope... i didnt keep myself updated with halfcut prices...

o...
Anyway thank you...



[SkYwAlKeR]

Anybody got the inside picture of v6?

6a10

http://img02.picoodle.com/img/img02/3/10/3/f_ProtonSagaVm_48cad25.jpg

6a12

http://www.zerotohundred.com/newforums/picture.php?albumid=336&pictureid=999

6a12tt

http://memimage.cardomain.com/ride_images/3/2623/1801/31555900013_large.jpg



[Sonic Thunder]

6a12
2.0L dohc engine
v6 24v engine
NA engine

6a10
1.6L dohc engine
v6 24v engine
NA engine

6a12tt
2.0L dohc engine
v6 24v engine
twin turbo configuration

dear bro skywalker...thanx for clearin my doubt...i was reading hypertune yesterday...where 3 perdana twin-turbs were featured...and their specs were written as 2.5 litres...wat was wrong was dat they were runnin 6A12TT engine...as far as i knw...only 6A13TT engines are 2.5litres...i guess even da best tuning magazine in malaysia can go wrong...thanx for da info anyways...cheers bro!:wavey:



[ongteckweng]

dear bro skywalker...thanx for clearin my doubt...i was reading hypertune yesterday...where 3 perdana twin-turbs were featured...and their specs were written as 2.5 litres...wat was wrong was dat they were runnin 6A12TT engine...as far as i knw...only 6A13TT engines are 2.5litres...i guess even da best tuning magazine in malaysia can go wrong...thanx for da info anyways...cheers bro!:wavey:

that's d reason i don't bother abt buying those mags...its a waste of money. they never get their facts right before printing their mags



[Sonic Thunder]

that's d reason i don't bother abt buying those mags...its a waste of money. they never get their facts right before printing their mags

true dat bro ong!
if it was a typo for 1 sentence..its acceptable...their mistake was for all 3 of da perdana's spec...very disappointing...spend so much on a mag...and then u end up wit false info...haiz...



[jj.v6]

Thks 4 you details o....
Do you know the price?

6a10-below 5k
6a12-2k(perdana ori)
6a12tt-7k
6a13tt-9k
prices are just estimate
its depends on wat car u drive...

6a12tt engines
http://www.zerotohundred.com/newforums/members/jj-v6-albums-6a12tt-engines.html

6a13tt
http://www.zerotohundred.com/newforums/proton/216490-perdana-v6-community-forum-69.html#post4152749



[speed2horizon]

6a10-below 5k
6a12-2k(perdana ori)
6a12tt-7k
6a13tt-9k
prices are just estimate
its depends on wat car u drive...

6a12tt engines
http://www.zerotohundred.com/newforums/members/jj-v6-albums-6a12tt-engines.html

6a13tt
http://www.zerotohundred.com/newforums/proton/216490-perdana-v6-community-forum-69.html#post4152749

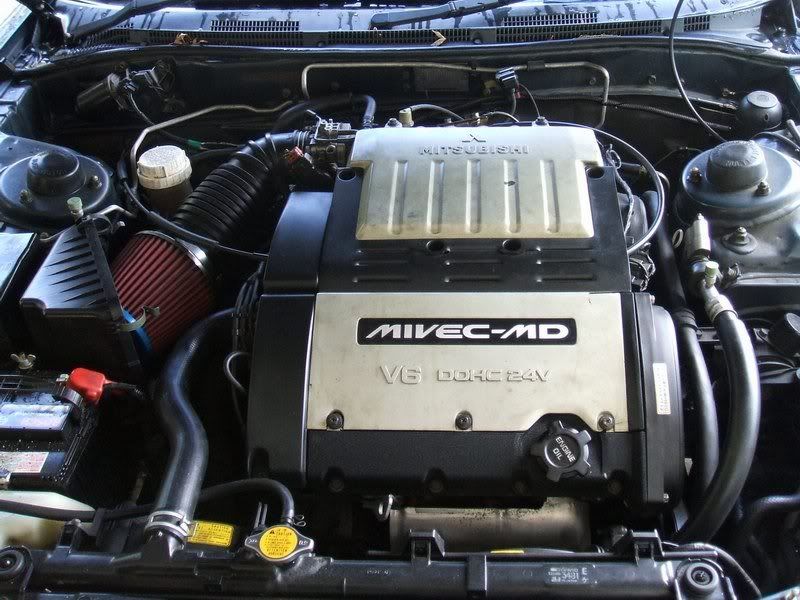

Don't forget there's still a 6A12 MIVEC.

taken from FTO.



[jj.v6]

Don't forget there's still a 6A12 MIVEC.

taken from FTO.

thanx 2 remind me bro speedtohorizon...
just miss out



[DanzEterna]

& there is also mivec twin turbo...



[jj.v6]

& there is also mivec twin turbo...

oops...the sifu is ere(



[DanzEterna]

mana ada sifu bro....
newbie only.....



[dD69]

can someone tell the pros and cons of 6a10?
i'm noobies here.



[oly]

theres also 6a11=1.8 v6...

better avoid v6...maintenance is high...power not that much...



[budakkampungaje]

v6N/A

Displacement, cc 1998
Engine model 6A12
Max.power (Net), kw(PS)/rpm 170 ps (125.04 kw) / 7000 rpm
Max.torque(Net), N*m(kg*m)/rpm 19.0 kg*m (186.33 N*m) / 4000 rpm
Power density 8.35
Engine type V type 6 cylinder DOHC24 valve
Engine information
Fuel system ECI-MULTI (electrically controlled gasoline injection)
Turbocharger No
Fuel type Unleaded premium gasoline
LEV system (Low emission vehicle) No
Compression ratio 10
Bore, mm 78.4
Stroke, mm 69
Final gear ratio
Fuel consumption at 10-15 modes, l/100km 9.2
Fuel consumption at 60 km/h, l/100km

1.8v6 6a11

Displacement, cc 1829
Engine model 6A11
Max.power (Net), kw(PS)/rpm 135 ps (99.29 kw) / 6000 rpm
Max.torque(Net), N*m(kg*m)/rpm 17.0 kg*m (166.71 N*m) / 4500 rpm
Power density 9.26
Engine type V type 6 cylinder SOHC24 valve
Engine information
Fuel system ECI-MULTI (electrically controlled gasoline injection)
Turbocharger No
Fuel type Unleaded regular gasoline
LEV system (Low emission vehicle) No
Compression ratio 9.5
Bore, mm 75
Stroke, mm 69
Final gear ratio
Fuel consumption at 10-15 modes, l/100km 8.4
Fuel consumption at 60 km/h, l/100km

Mivec'N'Mivec MD
Displacement, cc 1998
Engine model 6A12
Max.power (Net), kw(PS)/rpm 200 ps (147.10 kw) / 7500 rpm
Max.torque(Net), N*m(kg*m)/rpm 20.4 kg*m (200.06 N*m) / 6000 rpm
Power density 6.65
Engine type V type 6 cylinder DOHC24 valve
Engine information MIVEC
Fuel system ECI-MULTI (electrically controlled gasoline injection)
Turbocharger No
Fuel type Unleaded premium gasoline
LEV system (Low emission vehicle) No
Compression ratio 10
Bore, mm 78.4
Stroke, mm 69
Final gear ratio
Fuel consumption at 10-15 modes, l/100km 8
Fuel consumption at 60 km/h, l/100km


6a10 1.6
Displacement, cc 1597
Engine model 6A10
Max.power (Net), kw(PS)/rpm 140 ps (102.97 kw) / 7000 rpm
Max.torque(Net), N*m(kg*m)/rpm 15.0 kg*m (147.10 N*m) / 4500 rpm
Power density 7.79
Engine type V type 6 cylinder DOHC24 valve
Engine information
Fuel system ECI multiple (electrically controlled gasoline injection)
Turbocharger No
Fuel type Unleaded premium gasoline
LEV system (Low emission vehicle) No
Compression ratio 10
Bore, mm 73
Stroke, mm 63.6
Final gear ratio
Fuel consumption at 10-15 modes, l/100km 8.3
Fuel consumption at 60 km/h, l/100km

twinturbo-ETERNA@GALANT(auto)
Displacement, cc 1998
Engine model 6A12
Max.power (Net), kw(PS)/rpm 215 ps (158.13 kw) / 6000 rpm
Max.torque(Net), N*m(kg*m)/rpm 31.5 kg*m (308.91 N*m) / 3500 rpm
Power density 6.79
Engine type V type 6 cylinderDOHC24 valve IC twin turbo
Engine information
Fuel system ECI-MULTI (electrically controlled gasoline injection)
Turbocharger Twin Turbo with intercooler
Fuel type Unleaded premium gasoline
LEV system (Low emission vehicle) No
Compression ratio 8.5
Bore, mm 78.4
Stroke, mm 69
Final gear ratio
Fuel consumption at 10-15 modes, l/100km 10.4
Fuel consumption at 60 km/h, l/100km

Twinturbo GALANT VR4(manual)
Displacement, cc 1998
Engine model 6A12T (twin turbo intercooler)
Max.power (Net), kw(PS)/rpm 240 ps (176.52 kw) / 6000 rpm
Max.torque(Net), N*m(kg*m)/rpm 31.5 kg*m (308.91 N*m) / 3500 rpm
Power density 5.88
Engine type V type 6 cylinderDOHC24 valve IC twin turbo
Engine information
Fuel system ECI-MULTI (electrically controlled gasoline injection)
Turbocharger Twin Turbo with intercooler
Fuel type Unleaded premium gasoline
LEV system (Low emission vehicle) No
Compression ratio 8.5
Bore, mm 78.4
Stroke, mm 69
Final gear ratio
Fuel consumption at 10-15 modes, l/100km 9.8
Fuel consumption at 60 km/h, l/100km

6a13ttV6 2.5
Displacement, cc 2498
Engine model 6A13
Max.power (Net), kw(PS)/rpm 280 ps (205.94 kw) / 5500 rpm
Max.torque(Net), N*m(kg*m)/rpm 37.0 kg*m (362.85 N*m) / 4000 rpm
Power density 5.21
Engine type V type 6 cylinderDOHC24 valve IC twin turbo
Engine information
Fuel system ECI-MULTI
Turbocharger Twin Turbo with intercooler
Fuel type Unleaded premium gasoline
LEV system (Low emission vehicle) No
Compression ratio 8.5
Bore, mm 81
Stroke, mm 80.8
Final gear ratio
Fuel consumption at 10-15 modes, l/100km 10.5
Fuel consumption at 60 km/h, l/100km

6G72TT V6 3.0(can fit to perdana...kalau berani laaa)
Displacement, cc 2972
Engine model 6G72T (twin turbo twin intercooler)
Max.power (Net), kw(PS)/rpm 280 ps (205.94 kw) / 6000 rpm
Max.torque(Net), N*m(kg*m)/rpm 43.5 kg*m (426.59 N*m) / 2500 rpm
Power density 6.11
Engine type V type 6 cylinderDOHC24 valve IC twin turbo
Engine information
Fuel system ECI-MULTI (electrically controlled gasoline injection)
Turbocharger Twin Turbo with intercooler
Fuel type Unleaded premium gasoline
LEV system (Low emission vehicle) No
Compression ratio 8
Bore, mm 91.1
Stroke, mm 76
Final gear ratio
Fuel consumption at 10-15 modes, l/100km 12.5
Fuel consumption at 60 km/h, l/100km



[Lolo Rider]

6a10
1.6L dohc engine
v6 24v engine
NA engine

in a wira



[DanzEterna]

u wan the details or engine manuals?
