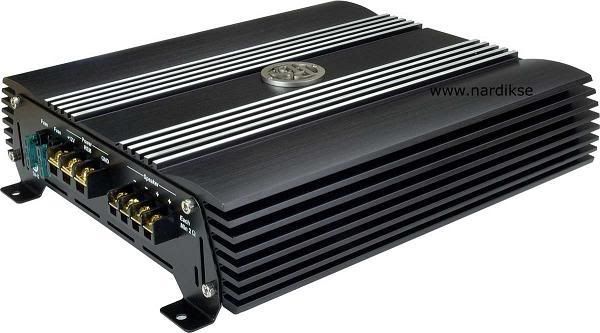

Genuine DLS Classic CA-12 500W RMS X 1 Channel Monoblock Amplifier
Made in Sweden
Retail Selling : RM2800!
Best Price : RM1550
1 Year Warranty Under NTC Malaysia DLS Distributor
Dealing Method : COD @ Pandan Perdana / Pandan Jaya or Skynet
Age Of Item : Brand New
Contact No. : 016-2620242
Email : [email protected]
Classic series CA12 The Classic CA 12 is a powerful mono amplifier with a nominal output of 220 Watts in 4 ohm, 400 Watts in 2 ohm load, and 500 Watts in 1 ohm load. Built-in low-pass filter for subwoofers, variable between 50 and 500 Hz. Variable subsonic filter 15-150 Hz. Continuously variable phase control 0-180 degrees. Built-in protection circuits shut down the amplifier in the event of overloads. High level input with automatic start. Cooling fan in the bottom plate.
Product Description:
- Class: AB
- Number of channels: 1
- Nominal RMS power output in 4 ohm (0,1% THD): 220 W
- Nominal RMS power output in 2 ohm (0,4% THD): 400 W
- Nominal RMS power output in 1 ohm (0,5% THD): 500 W
- Frequency range: 10 Hz - 35 kHz
- S / N-ratio, A-weighted: > 100 dB
- Damping factor: > 100
- Input impedance low level: > 10 kohm
- Input impedance, high level: 100 ohm
- Input sensitivity, variable: 0,25 - 5 V
- High level input with auto start: Yes
- Low level output: Yes
- Highpass filter / subsonic variable: 15 - 150 Hz
- Lowpass filter variable: 50 - 500 Hz
- Continuously variable phase control: 0-180 degrees
- Current draw, idle: 0,7 A
- Fuse value: 2 x 30 A
- Dimensions H x D x B: 67 x 295 x 250 mm (2,63 x 11,6 x 9,84 inch)
- Weight: 3,8 kg ( 8,4 lb)
- Guarantee Original DLS Product
